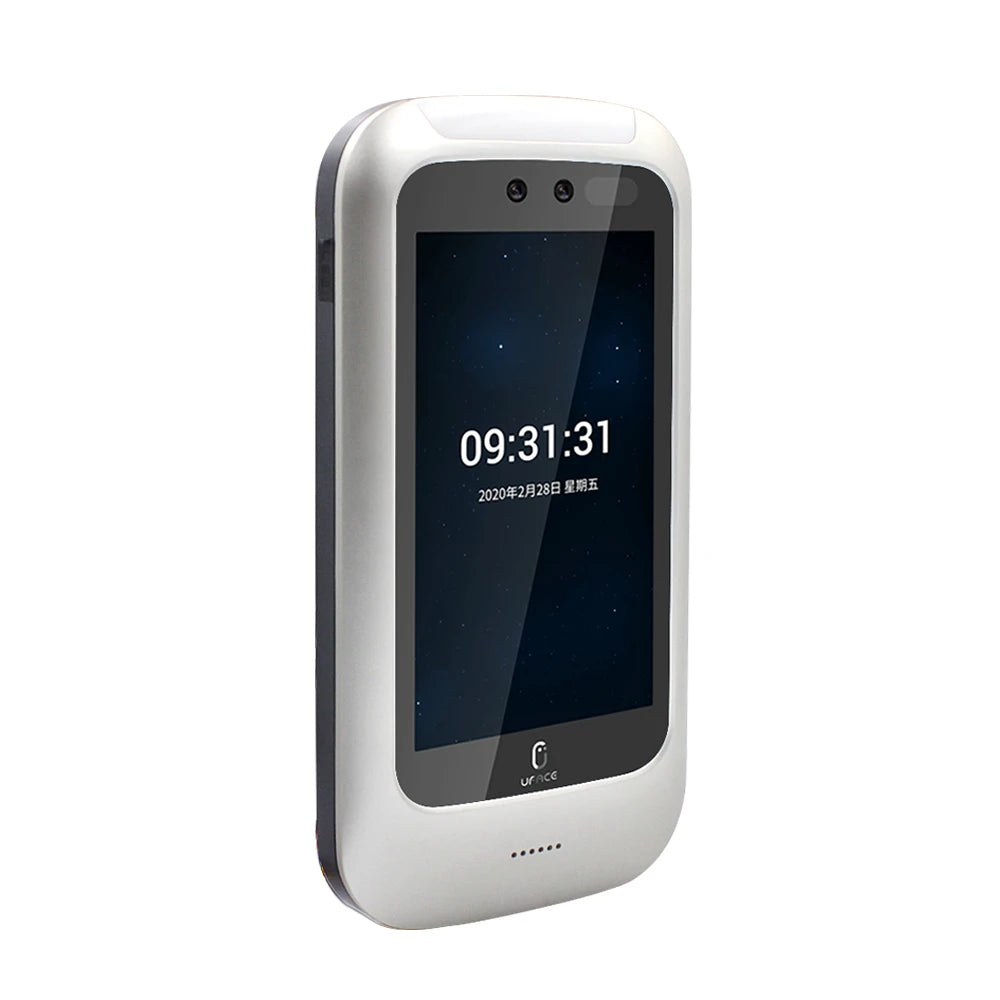

Facial recognition time tracking with touchscreen and IC card reader for up to 3000 users

This state-of-the-art 5-inch WLAN TCP/IP facial recognition terminal is ideal for time and attendance tracking, access control, or presence management in businesses, offices, or residential complexes. Thanks to its versatility, performance, and modern features, it offers reliable security and ease of use.

The device supports up to 3,000 image users and works with the 13.56 MHz IC card (Mifare) as an alternative or supplement to facial recognition. Facial recognition is also mask-proof – meaning the device can identify people even when wearing a face mask.

The main camera is based on a 1/2-inch progressive scan CMOS sensor with an aperture of f/2.4 and a focal length of 4.1 mm. The field of view (FOV) is 55.2°, ensuring good coverage. The display resolution is 780 × 1280 pixels.

Communication and connectivity are via RJ45 (Ethernet), WiFi, and TCP/IP. The device can be controlled via LAN or cloud software. It also supports Wiegand output, making it compatible with many access control systems.

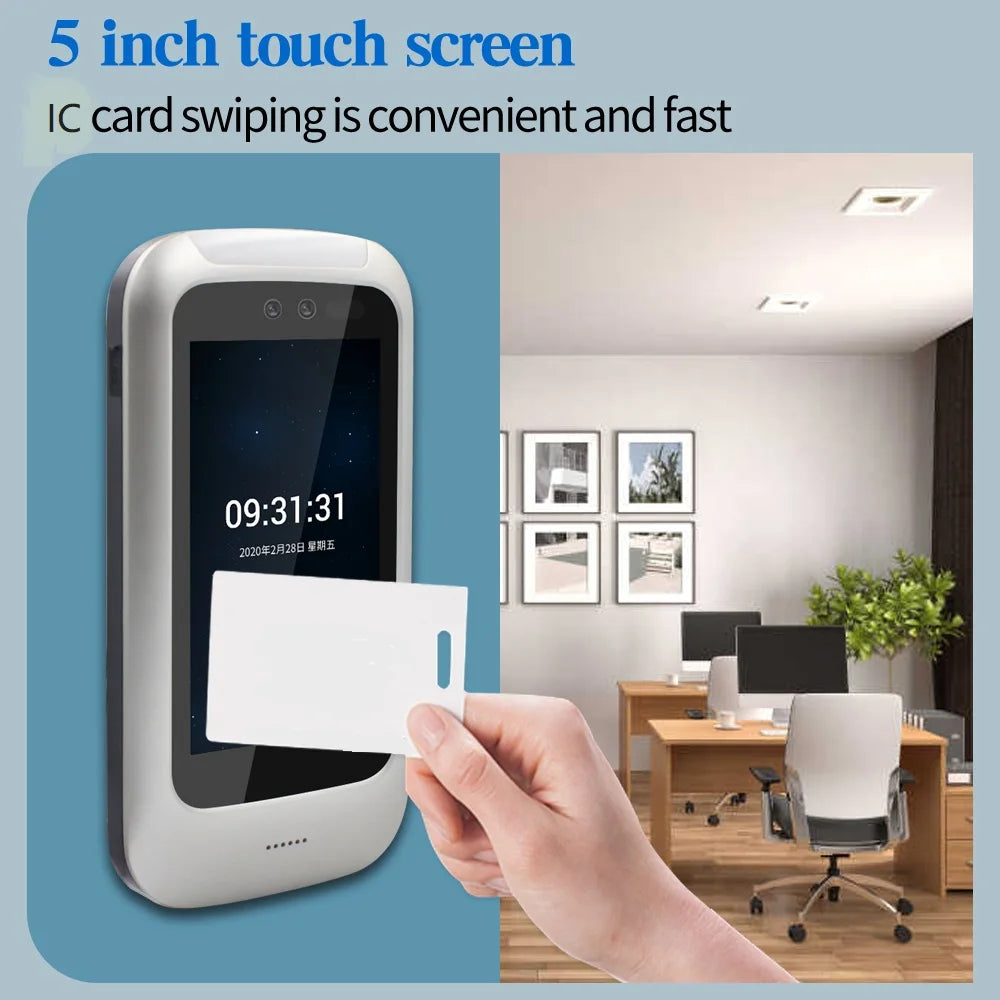

An intuitive 5-inch touchscreen allows for easy operation directly on the device. Even in backlighting or difficult lighting conditions, anti-backlighting technology has been incorporated to ensure stable recognition performance.

The robust housing measures 186 × 94 × 23 mm and has a compact design, making it easy to integrate into entrance areas. The operating system is based on Linux, which promotes stability, security, and long-term updates.

The device offers a wide range of applications: as an attendance terminal in the office, as access control in residential complexes, as a checkpoint in factory halls or as an access solution in communal facilities.

If you have any questions about installation, compatibility or software integration, I will be happy to help.

Technical specifications

• Aperture: F2.4

• Sensor: 1/2" progressive scan CMOS

• Field of view: 55.2°

• Focal length: 4.1 mm

• Display resolution: 780 × 1280

• Communication: RJ45, WiFi, TCP/IP

• Operating system: Linux

• User capacity: up to 3,000 image users

• Card reader: 13.56 MHz IC / Mifare

• Support: Face recognition with masks

• Exits: Wiegand

• Dimensions: 186 × 94 × 23 mm

• Control: via cloud or LAN software
